Applications
- Offices
- Interior Use Only
- Frameless Glass Door
- French Style
- Quiet area
- Breezy environments
- 8ft Door
Product Description and Features
- Apply for door open ≤ 120°

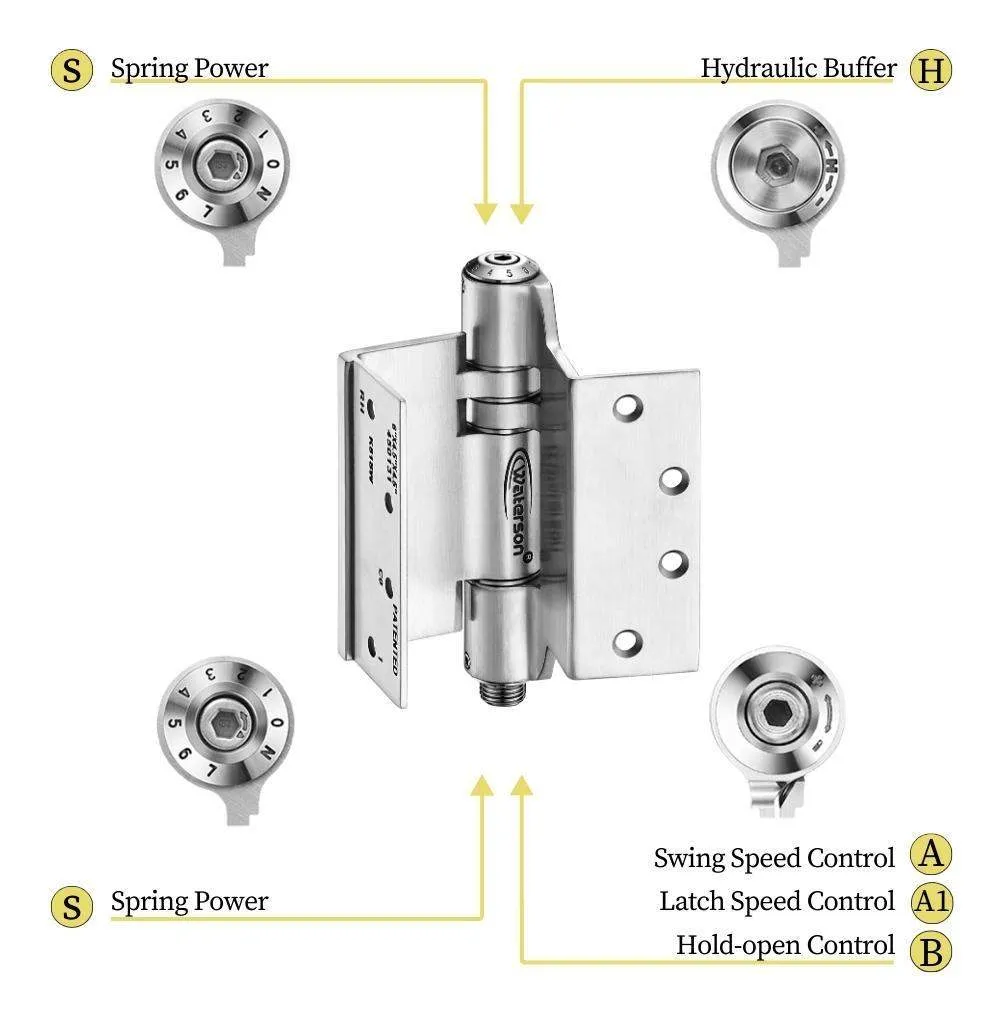

- Fully adjustable closing force and speed according to environment needs

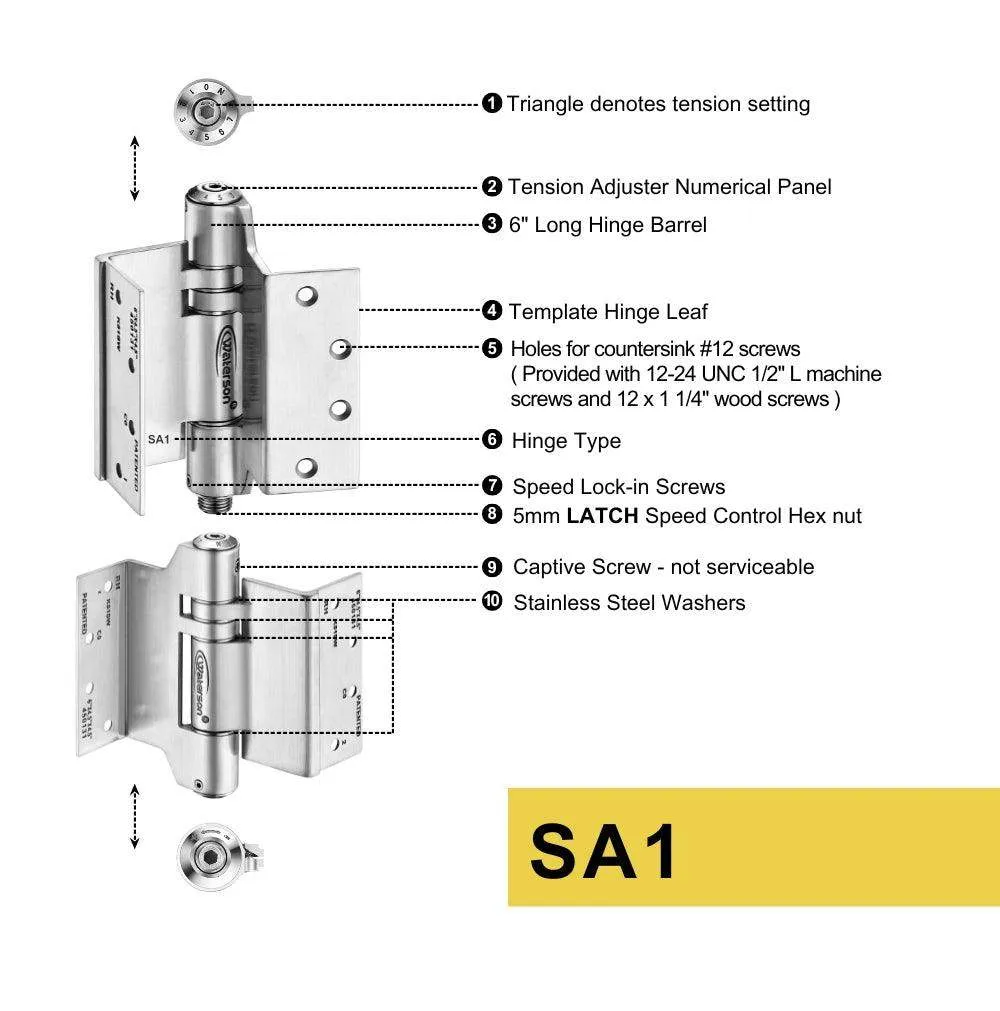

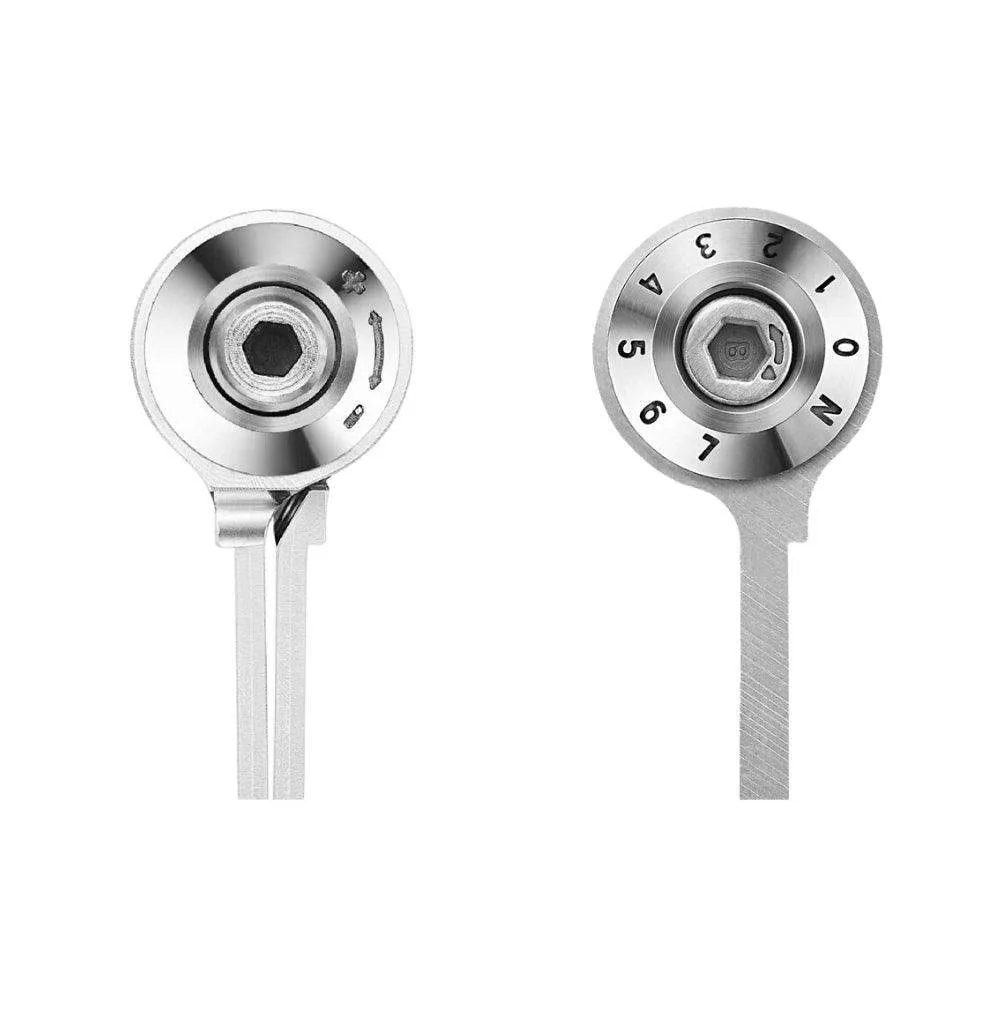

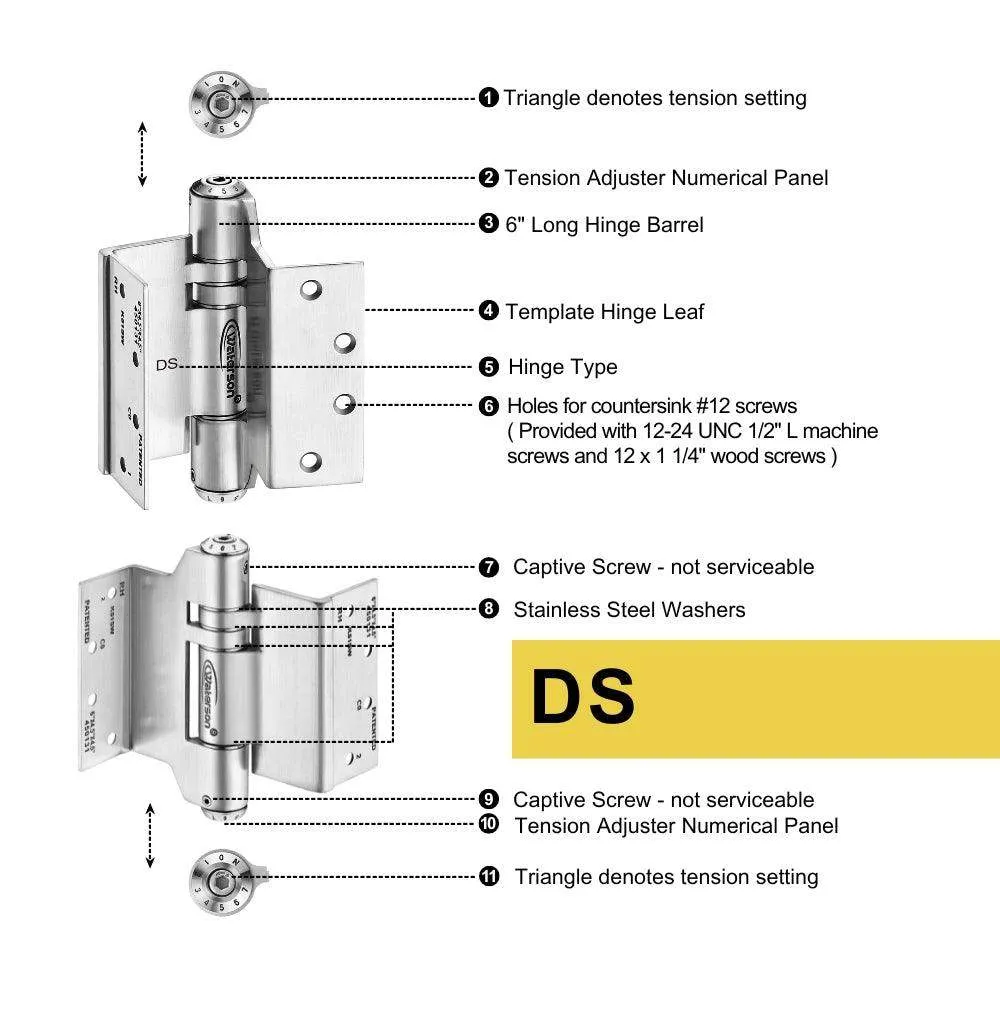

- Numerical adjustment panel on hinge end to set up precise tension

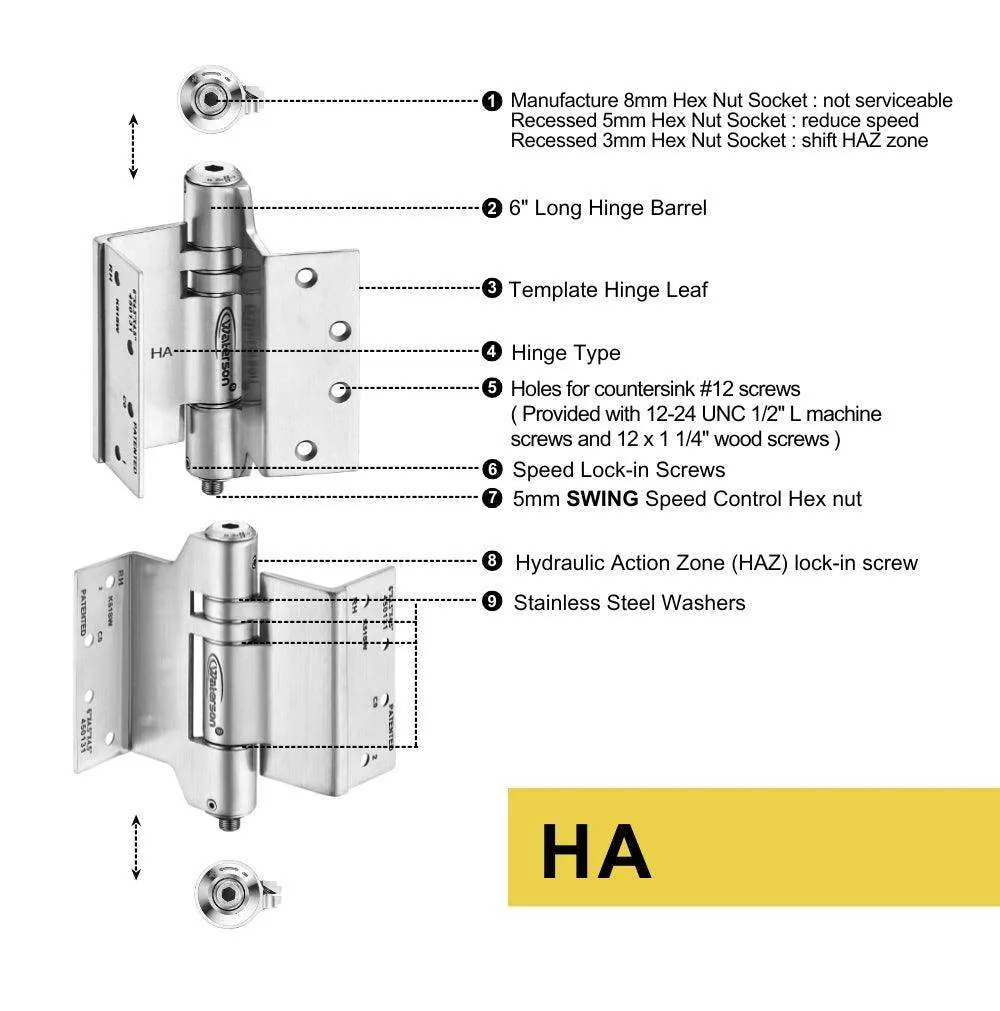

- Include both mechanical and hydraulic mechanism supporting quiet close needs
- Aesthetically pleasing compared to door closers -- without obtrusive arm
- Hold-open feature to keep door stay open at 90°
-

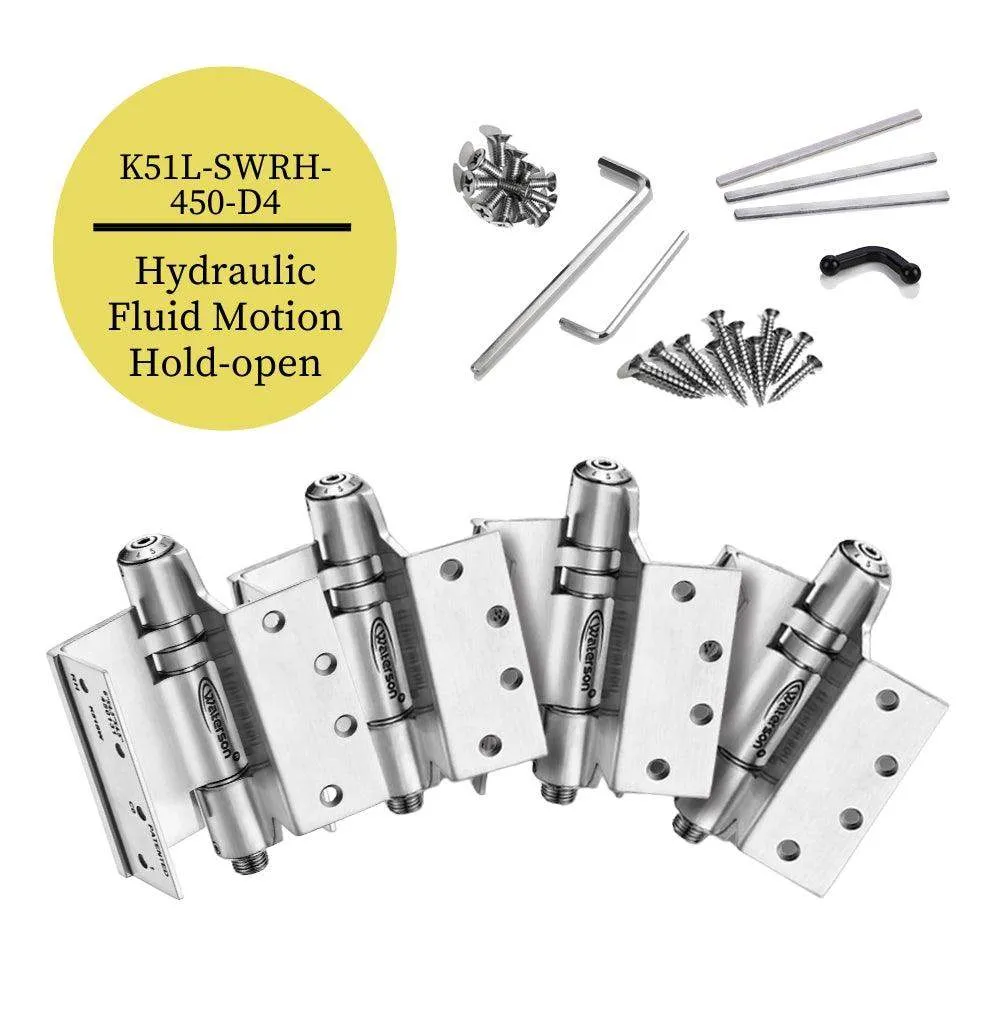

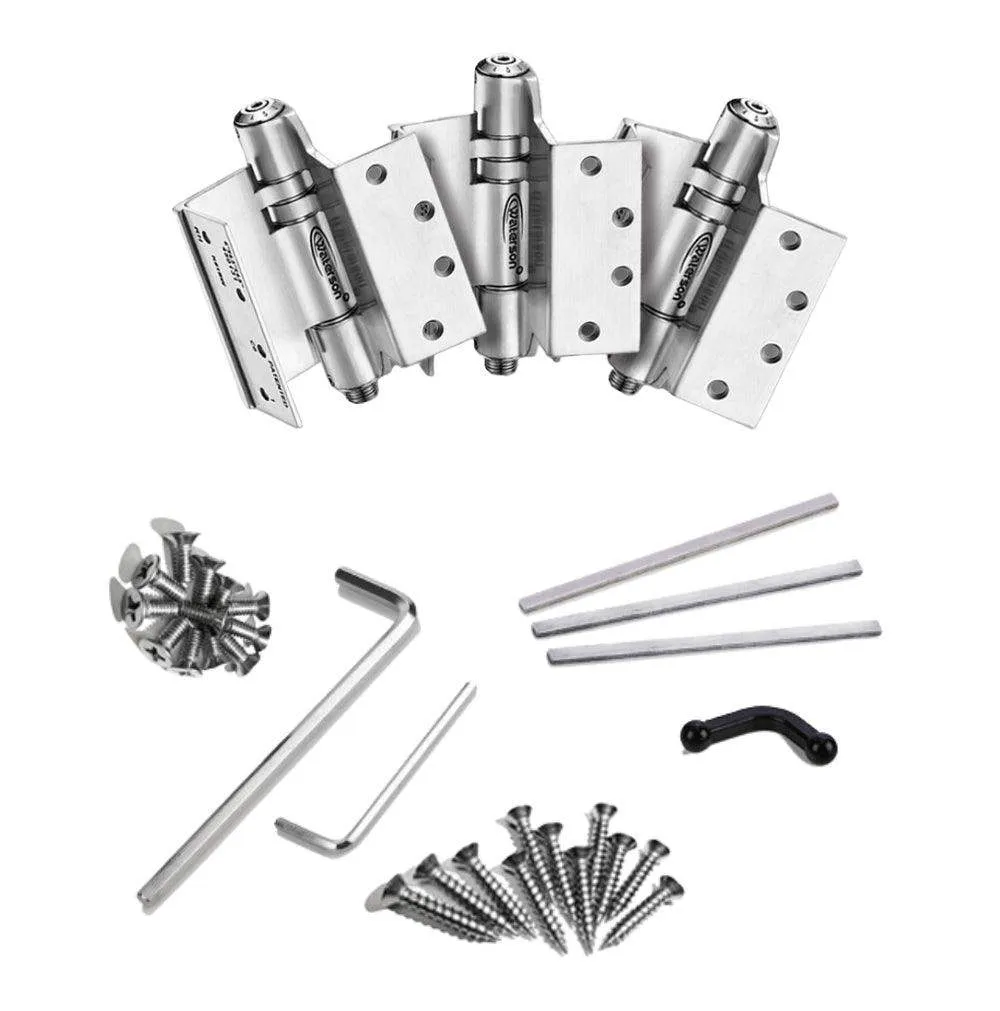

Installation Kits
- Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
- Four steel adhesive shims for gap adjustment between door and frame as needed
- Tension Crook: Keeps hinge open during installation
- 5mm & 3mm hex allen wrenches
Compliance Standards

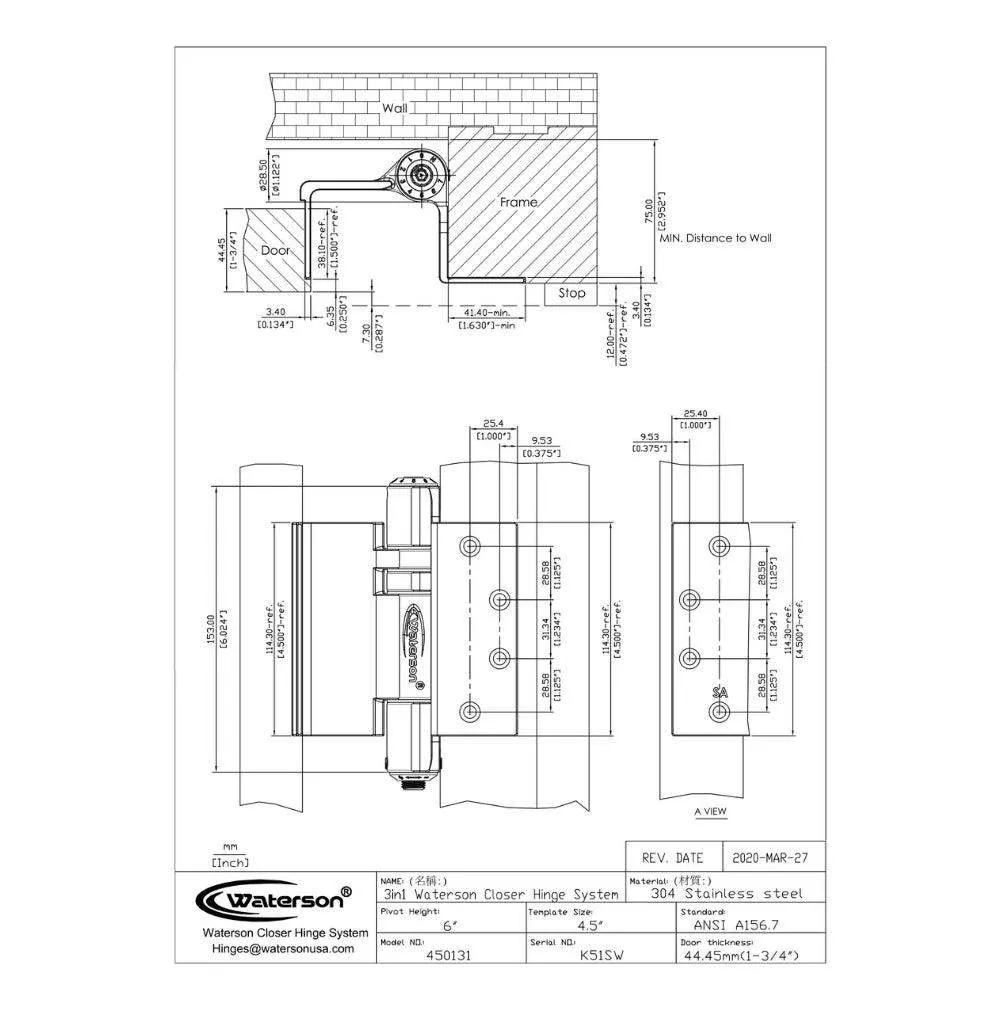

- ANSI A156.7 Template Hinge : 4.5” x 4.5”
- CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges

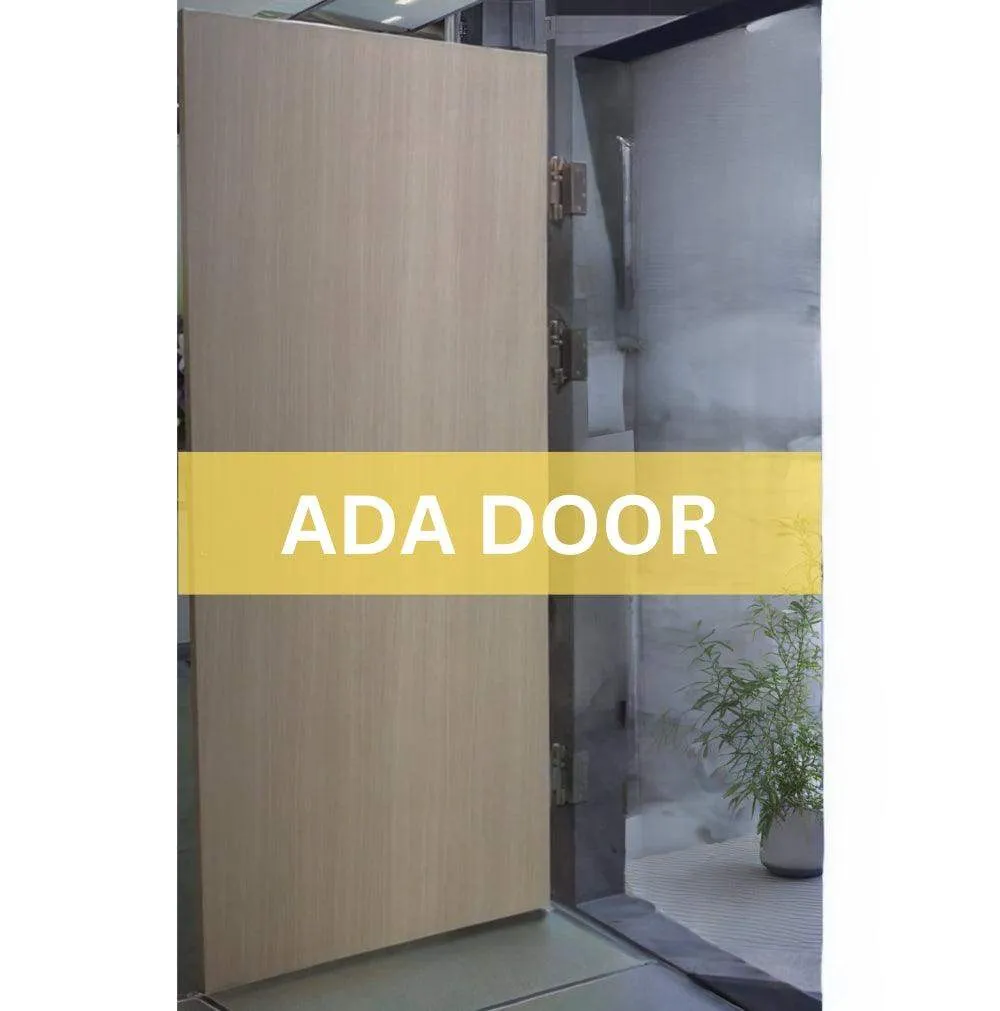

- ADA Force : opening force no more than 5 lbs
- ADA Closing Speed: at least 5 sec to move from m 90° to 12°
- ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers
-

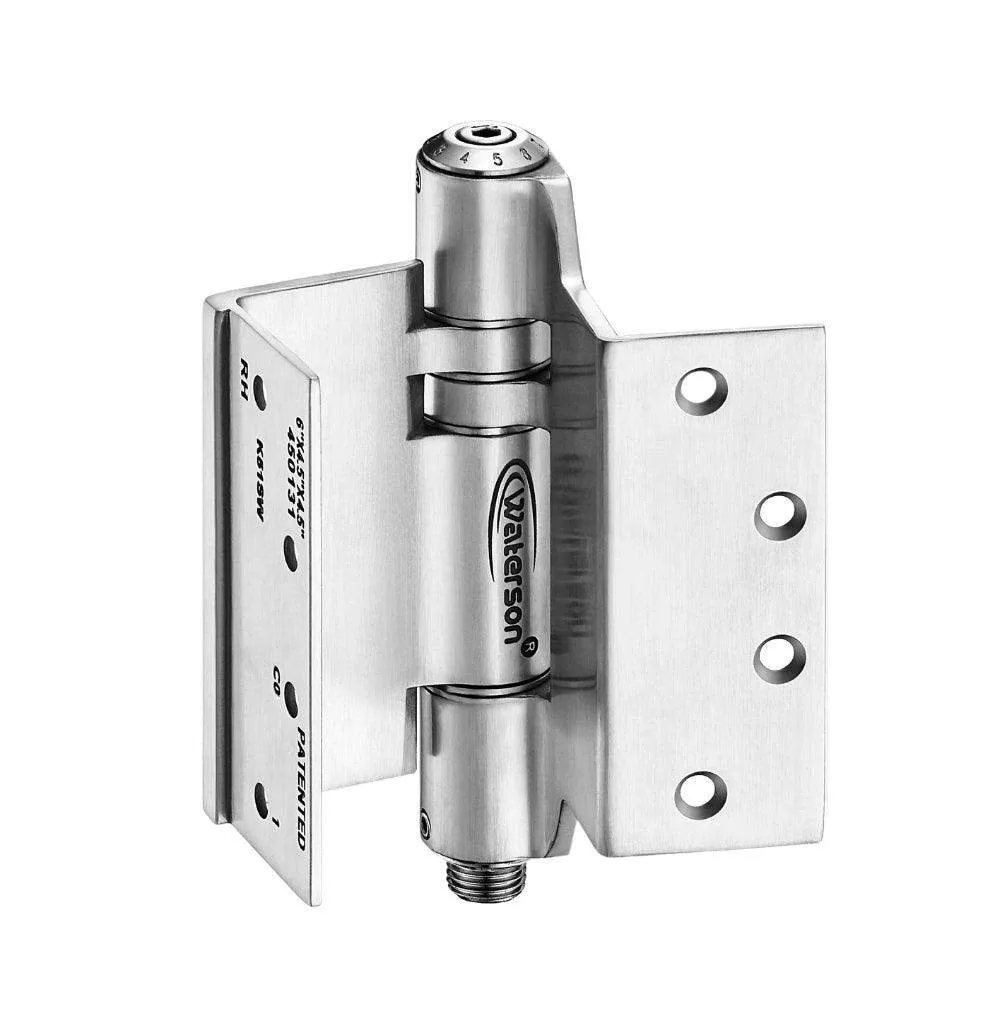

Product SKU K51L-SWRH-450-D4 Hinge Type Full Mortise, 4 1/2Inch x 4 1/2Inch Hinge Material Stainless Steel Door Weight Up to 260lbs Approx Door Size 1150mm W x 2200mm H (4ft x 7ft) Door Thickness 1 ¾” (40-50 mm) Self-closing o Fluid Motion o Hold-open o Fixing Method Screw-On, only spot weld AFTER speed adjustment Color/Finish Satin Brushed Combination/Quantity DS.HA.SB.SA1,4 Pack -
